Nos réalisations
Ci-dessous un échantillon de nos réalisations :
FPGA Test Platform (verif DO-254)
– Schematic and layout
– 10 layers (HDI 2N2 with buried vias)
– IGLOO FPGA : 0,55mm BGA pitch (256 balls)
– More than 800 components
– Dedicated to be connected to ProFPGA board.
Embedded Main Board
– Schematic and layout
– 4 layers PCB (reduced 15x30mm size)
– PSoC6 SoC : 0,5mm BGA pitch (116 balls)
– 0201 minimum size

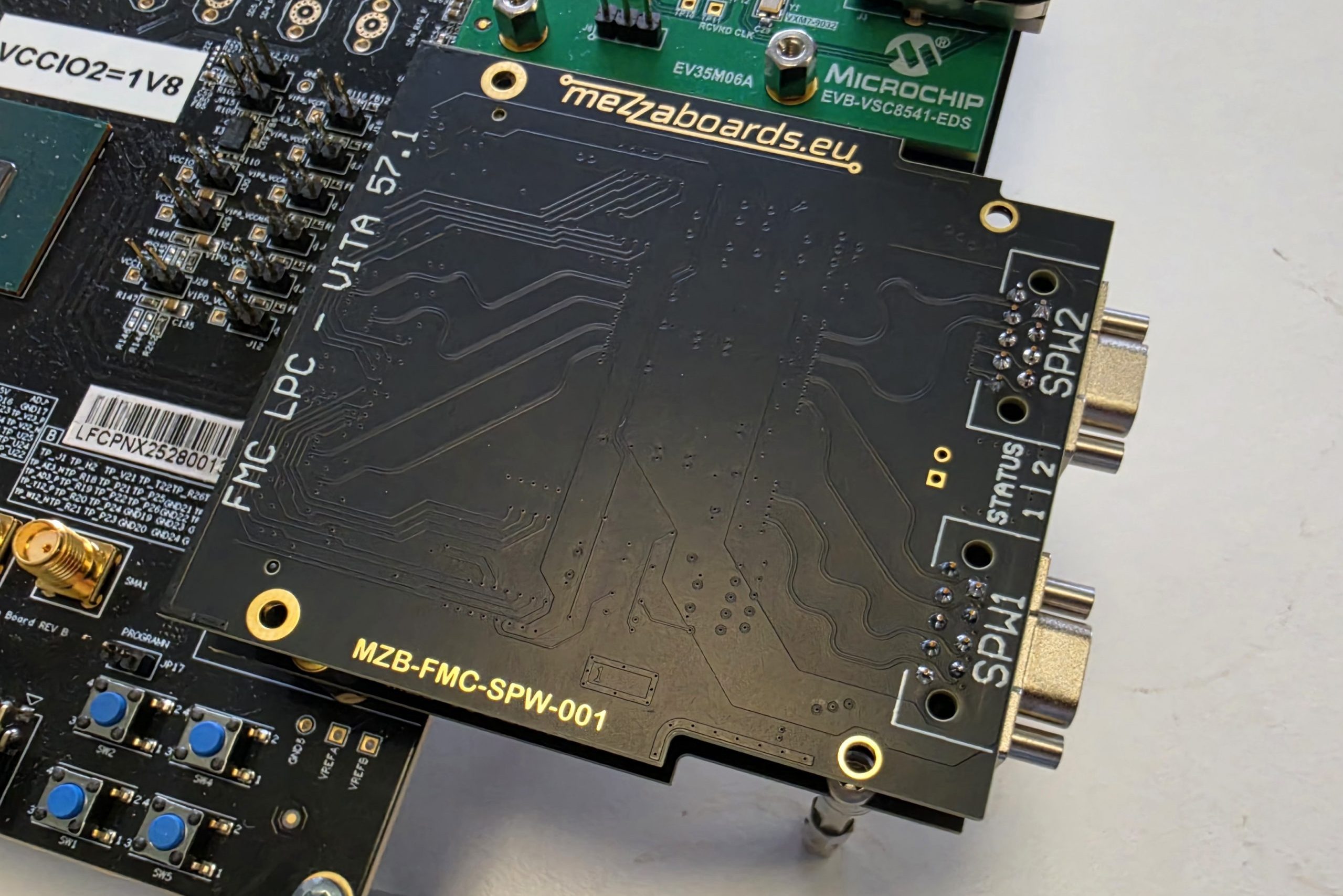

SpaceWire FMC board
– Schematic, layout and assembly
– 4 layers impedance controlled PCB
– 300Mbps LVDS lines
– VITA 57.1 full compliant

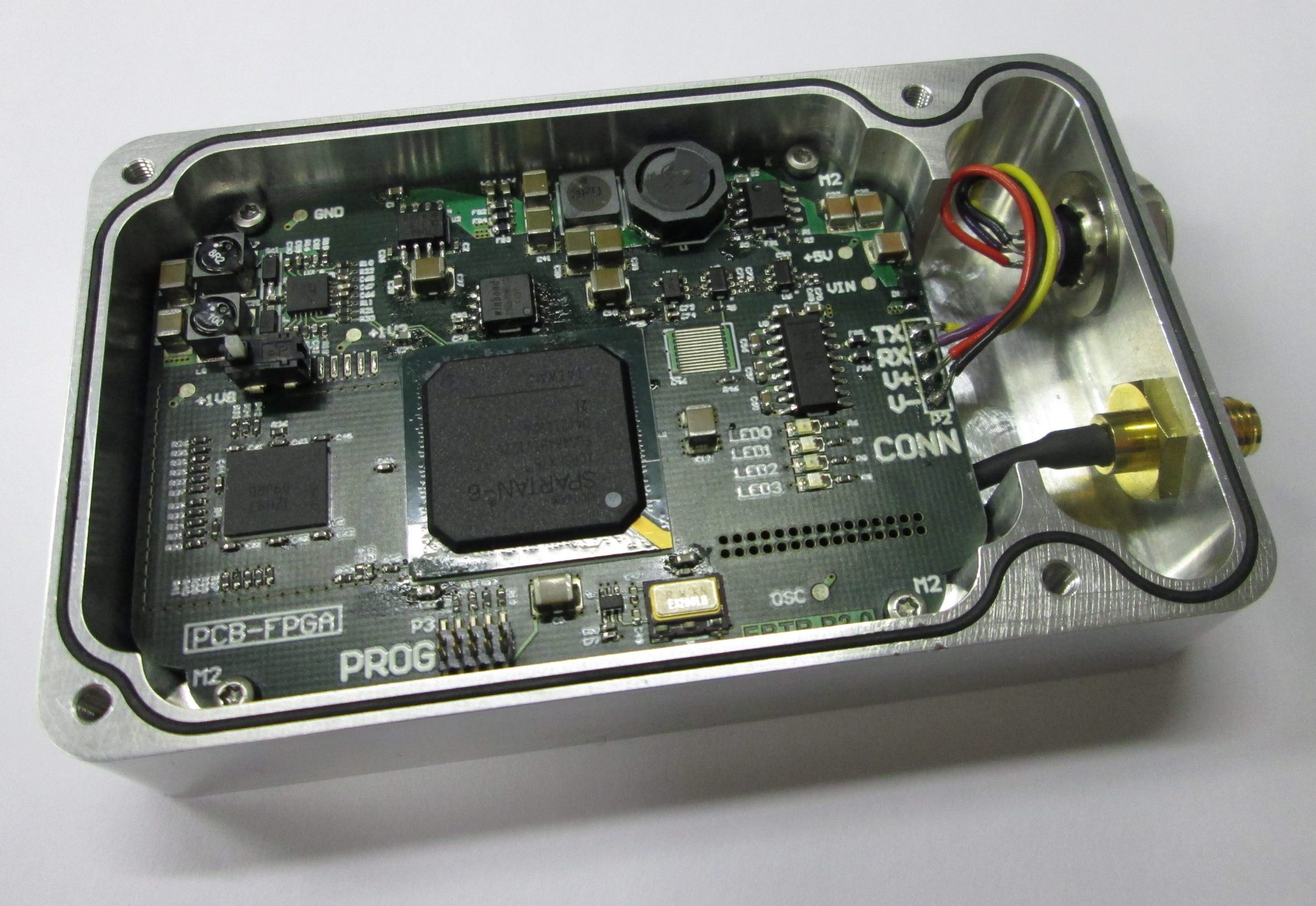

Satellite Beacon Tracking Receiver
– Schematic, layout and enclosure
– 6 layers PCB
– Spartan 6 FPGA : 1mm BGA pitch (484 balls)
– LPDDR : 0,8mm BGA pitch
– IP68 alloy enclosure
L-band Digitizer Front-End
– Schematic and layout
– 2 layers PCB
– 950 to 2150MHz analog input (L-band)
– Managed I/Q signals

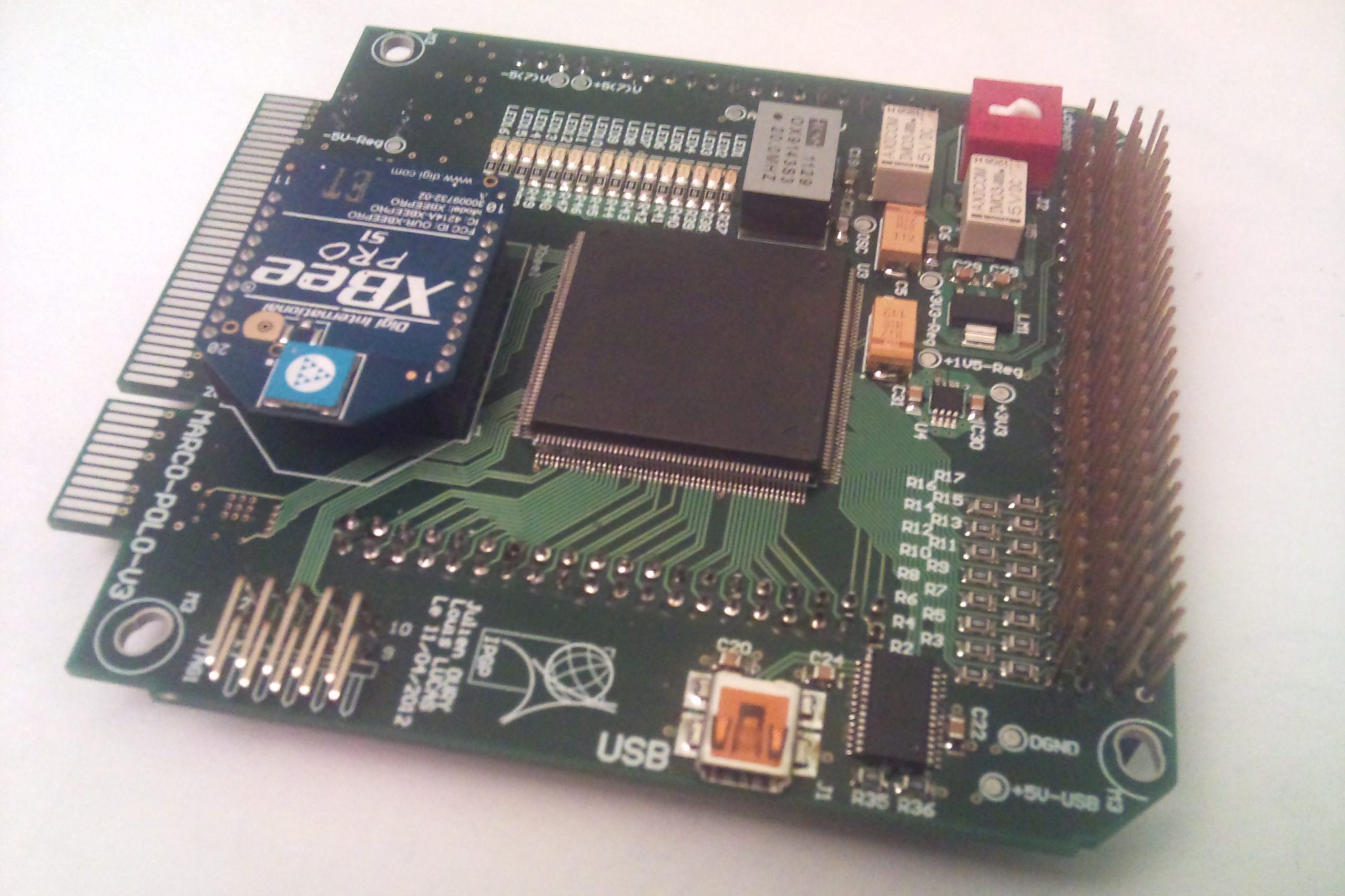

Seismic Data Acquisition Board
– Schematic, layout and assembly
– 4 layers PCB
– ProASIC3E FPGA : 0,5mm QFP 208 pins
USB High-Voltage Pulse Generator
– Schematic, layout and assembly
– 2 layers PCB
– 500V isolation
– Designed for specific USB enclosure
